• M.2 to USB Adapter, RIITOP M2 SSD to USB 3.1 Reader Compatible with Both NVMe (PCI-e Channel) & B M Key (SATA Channel) SSD, allows adding NVMe or B M Key M.2 SSD to your PC via USB 3.2/3.1/3.0 Type-A Port at perfect performance
• Chipset and Speed - RIITOP M2 USB Adapter Adopts Realtek 9210B Master chip, USB 3.1 Gen2 10Gbps transmission. It will be reduced to USB 3.0 Speed (5Gbps) if connecting to USB 3.0 Type-A but not USB 3.1 Type-A Port
• RIITOP M.2 USB Adapter is not only NVMe to USB Adapter, it can be Compatible with M.2 SSDs ( Both NVMe and B M key SATA): 80x22mm, 60x22mm and 42x22mm. Such as PM961, 960EVO, such as Samsung 970 EVO /950Pro/ 960Evo/ XP941/ PM951/ PM961/ SM951/ SM962, WD Black NVMe SSD; and Samsung 860 EVO, WD SATA M.2 SSD
• Note: This M.2 NVMe SSD to USB Adapter adopts M key Socket, but can support both M.2 PCI-e Based M Key Nvme SSD, and SATA based B M key or B Key SSD

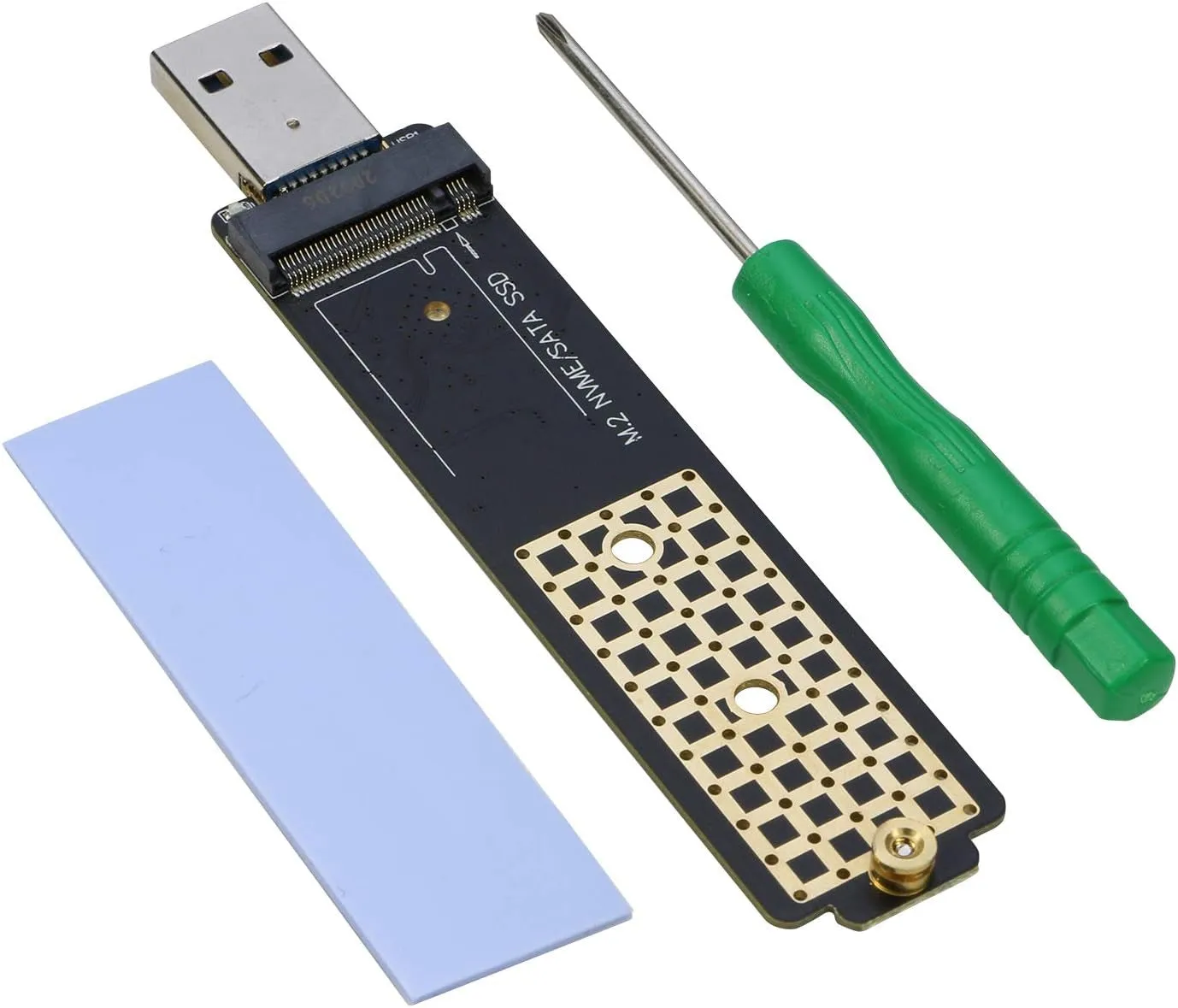

• Package including: 1x RIITOP M2 to USB Adapter, 1x Silicone Pad, 1x Screwdriver

Product Description



M.2 to USB Adapter

RIITOP M2 SSD to USB Card Reader Adapter

Compatible with Both NVMe (PCI-e Channel) & B M Key (SATA Channel) SSD，allows adding NVMe or B M Key M.2 SSD to your PC via USB 3.1 3.0 Type-A Port at perfect performance.

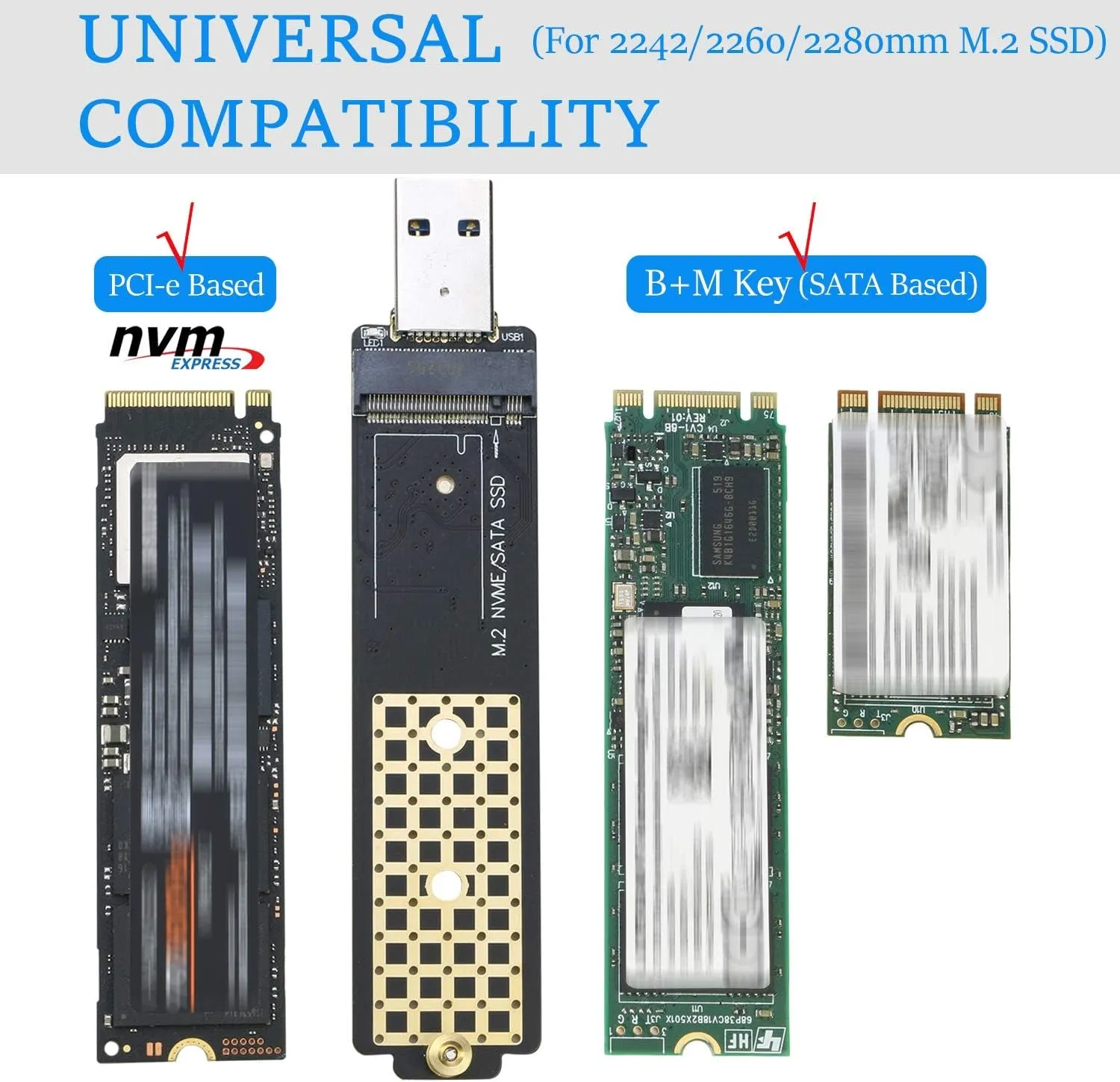

Compatible with M.2 SSD (Both B Key and M Key)

Apply to 80x22mm, 60x22mm and 42x22mm SSD.

Such as Samsung PM961, 960EVO, 970 EVO /950Pro/ 960Evo/ XP941/ PM951/ PM961/ SM951/ SM962, WD Black NVMe SSD; and Samsung 860 EVO, WD SATA M.2 SSD.

Chipset and Speed

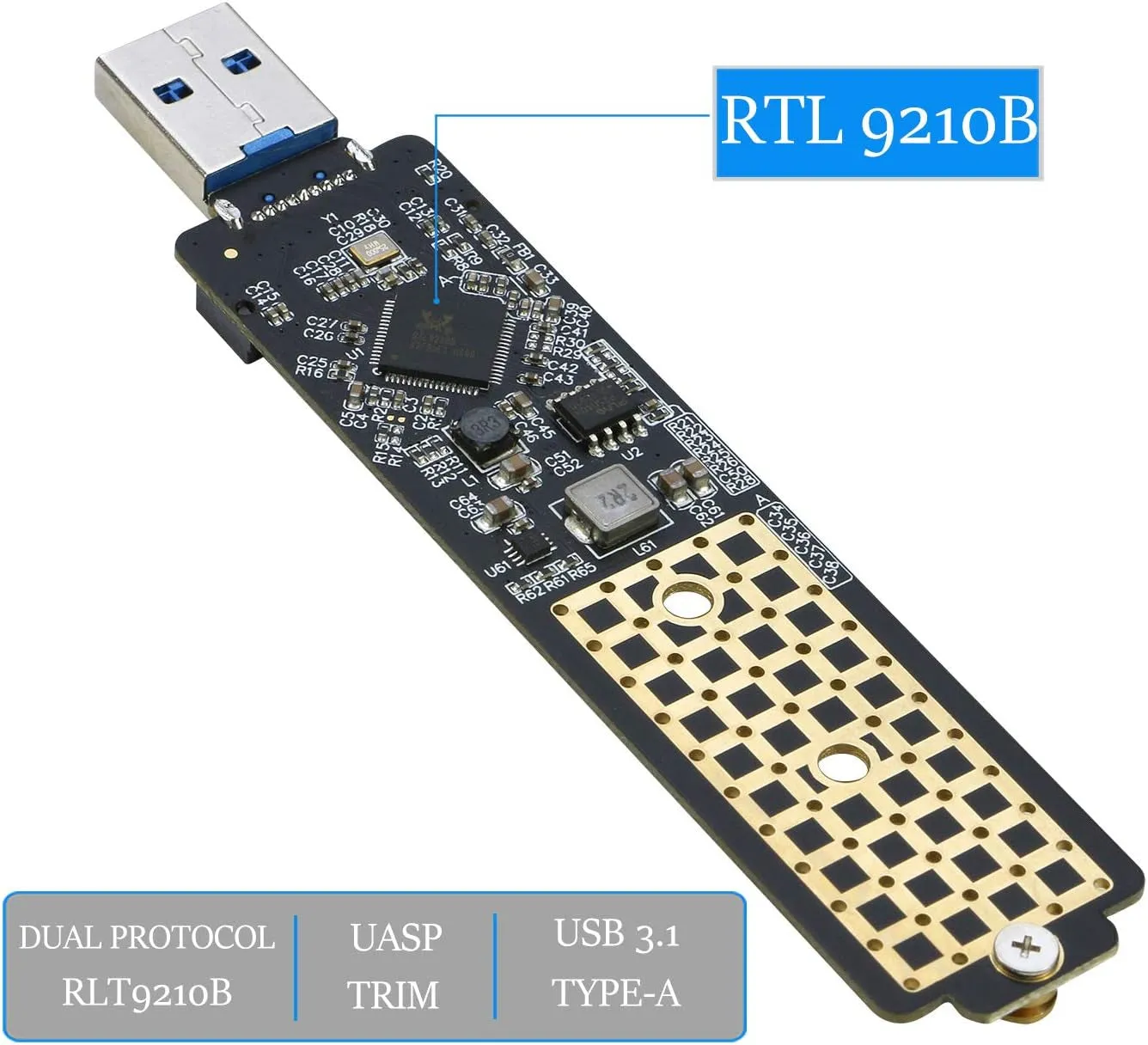

Adopt Realtek 9210B master chipset, USB3.1 GEN2 10Gbps transmission speed.

NOTE: It will be reduced to USB 3.0 Speed if connecting to USB 3.0 Type-A But not USB 3.1 Type-A Port

Note:

1. Support Both B-Key and M-Key M.2 SSD (PCIe NVMe, NGFF SATA Based ).

2. Date Transfer Rate up to 10Gbps for USB 3.1 Type A, 5Gbps for USB 3.0 Type A.

Features:

RIITOP M.2 to USB 3.1 Type A Adapter.

Both B-Key and M-Key M.2 SSD (NVMe, SATA Protocol) Support.

Date Transfer Rate up to 10Gbps for USB 3.1, 5Gbps for USB 3.0 Type A.

Plug & Play and Hot-Swapping.

Supports Windows XP/Visata/7/8/10.

Compatible with 2242, 2260, 2280 mm Four Different Specifications M. 2 SSDs.

Specifications:

Item: M. 2 SSD to USB 3.1 Type A Adapter Board.

Material: PCB Board.

Protocol: B-Key and M-Key.

Input: M.2 SSD Slot, both B-Key and M-Key M.2 SSD (NVMe, SATA Based).

Output: USB 3.1 Type A.

Dimension: 115*25*6 mm.

Transfer Speed: 10Gbps/ 5Gbps (NOTE: If connect with usb 3.0 type a port, speed will be 5Gbps).

Package Including:

1x RIITOP M.2 (B-Key and M-Key) SSD to USB Type A Adapter.
