Features
- Support 1CH face detection, instant playback and face index playback
- 4CH Hybrid HD-CVI DVR, supporting HD-CVI/IP video inputs
- H.264 dual-stream video compression
- 4CH @720P realtime recording
- 1*HDMI, 1*VGA video output
- 4 channel synchronous realtime playback, GRID interface & smart search
- ONVIF version 2.3 conformance
- Support 1*SATA HDDs up to 4TB, 2*USB2.0
- Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone (DMSS)
Specifications
|

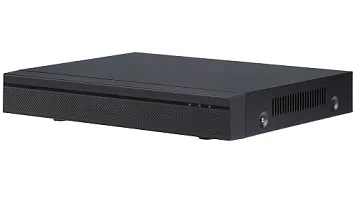

Model |
iDVR5104H/CVI-F |
||
|
System |
|||
|
Main Processor |
Embedded processor |
||
|
Operating System |
Embedded LINUX |
||
|
Video |
|||
|
Input |
4 channel, BNC |
||
|
Standard |
|
||
|
HDCVI |
720P HDCVI Camera |
||
|
IP |
1080P/720P IP Camera (Max. 2CH) |
||
|
Audio |
|||
|
Input |
1 channel, RCA |
||
|
Output |
1 channel, RCA |
||
|
Two-way Talk |
Reuse audio input/output channel 1 |
||
|
Display |
|||
|
Interface |
1 HDMI, 1 VGA |
||
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 |
||
|
Display Split |
1/4 |
||
|
Privacy Masking |
4 rectangular zones (each camera) |
||
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
||
|
Recording |
|||
|
Video/Audio Compression |
H.264/G.711 |
||
|
Record Rate |
Main Stream: |
720P/960H/D1 (1~25/30fps) |
|
|
Extra Stream |
CIF/QCIF(1~25/30fps), D1(1~12fps) |
||
|
Bit Rate |
48~4096Kb/s |
||
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
||
|
Record Interval |
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
||
|
Video Detection & Alarm |
|||
|
Trigger Events |
Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, |
||
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
||
|
Playback & Backup |
|||
|
Sync Playback |
1/4 |
||
|
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
||
|
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
||
|
Backup Mode |
USB Device/Internal SATA burner/Network |
||
|
Network |
|||
|
Ethernet |
RJ-45 port (10/100M) |
||
|
Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
||
|
Max. User Access |
128 users |
||
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
||
|
Storage |
|||
|
Internal HDD |
1 SATA port, up to 4TB |
||
|
Auxiliary Interface |
|||
|
USB Interface |
2 ports(1 Rear), USB2.0 |
||
|
RS485 |
1 port, For PTZ Control |
||
|
General |
|||
|
Power Supply |
DC12V/2A |
||
|
Power Consumption |
10W(without HDD) |
||
|
Working Environment |
-10°C ~ 55°C / 10%~90%RH / 86~106kpa |
||
|
Dimension(W×D×H) |
Mini 1U, 325mm×255mm×55mm |
||
|
Weight |
1.5KG(without HDD) |
||
