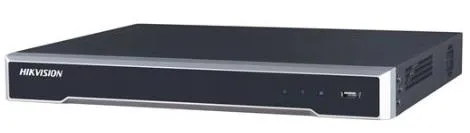

HIKVISION Embedded 4K NVR - 16 Channel (DS-7616NI-K2)

Product Description

• Third-party network cameras supported.
• Up to 8 Megapixels resolution recording.
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution.
• 4-ch network cameras can be connected with 40M/60M/80M incoming bandwidth.
• Support dual-os to ensure high reliability of system running.
• Support various VCA detection alarm and VCA search.
• Support H.265/H.264/MPEG4 video formats.

Specification

Video/Audio Input

Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)

IP video input: 16-ch

Network

Remote connection:  128

Incoming bandwidth: 160Mbps

Outgoing bandwidth: 160Mbps

Video/Audio Output

HDMI Output:  1-ch, resolution: 4K (3840*2160)/60Hz, 4K (3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Recording Resolution:  8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA/4CIF/DCIF/2CIF/CIF/QCIF

Audio Output:  1-ch, RCA (Linear, 1kΩ)

Synchronous Playback: 16-ch

VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720 / 60Hz, 1024*768/60Hz

Decoding

Capability: 8-ch@1080P

Live view / Playback: 8MP / 6MP / 5MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF/DCIF/2CIF/CIF/QCIF

Hard Disk

SATA: 2 SATA interfaces for 2 HDDs

Capacity: Up to 6TB capacity for each HDD

External Interface

Network Interface:  1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface

USB Interface:  Front panel: 1 × USB 2.0

                         Rear panel: 1 × USB 3.0

Alarm In: 4-ch

Alarm Out: 1-ch

General

Power Supply: 100 to 240VAC

Consumption (without hard disk and POE):  ≤ 15 W

Working Temperature: -10 oC ~ 55 oC ( 14 oF~ 131 oF)

Working Humidity: 10 % ~ 90 %

Chassis:  385 mm chassis

Dimensions: 385 × 315× 52 mm (15.2" 12.4" 2.0")

Weight (without HDD):  ≤ 3 kg (6.6 lb)
