Product Details
＋
| Video/Audio Input | ||
|---|---|---|
| Two-way audio input: | � | 1-ch, RCA (2.0 Vp-p, 1k?) |
| IP video input: | � | 64-ch |
| Network | ||
|---|---|---|
| Remote connection: | � | 128 |
| Incoming bandwidth: | � | 320Mbps or 200Mbps(when RAID is enabled) |
| Outgoing bandwidth: | � | 256Mpbs or 200Mbps(when RAID is enabled) |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA output: | � | 2-ch, resolution:� HMDI1:4K (3840 � 2160)/60Hz,� 4K (3840 � 2160)/30Hz, 2K (2560 � 1440)/60Hz, 1920 � 1080p/60Hz, 1600 � 1200/60Hz, 1280 � 1024/60Hz, 1280 � 720/60Hz, 1024 � 768/60Hz� VGA1: 2K (2560 � 1440)/60Hz, 1920 � 1080p/60Hz, 1600 � 1200/60Hz, 1280 � 1024/60Hz, 1280 � 720/60Hz, 1024 � 768/60Hz� HDMI2/VGA2:1920 � 1080p/60Hz, 1280 � 1024/60Hz, 1280 � 720/60Hz, 1024 � 768/60Hz |
| Recording Resolution: | � | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: | � | 2-ch, RCA (2.0Vp-p, 1K?) |
| Synchronous Playback: | � | 16-ch |
| Decoding | ||
|---|---|---|
| Capability: | � | 4-ch@8MP,16-ch@1080P |
| Live view / Playback: | � | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Hard Disk | ||
|---|---|---|
| Interface Type: | � | 1 eSATA interface |
| SATA: | � | 8 SATA interfaces for 8 HDDs |
| Capacity: | � | Up to 10TB capacity for each HDD |
| Disk array | ||
|---|---|---|
| Array type: | � | RAID0, RAID1, RAID5, RAID10 |
| Number of array: | � | 4 |

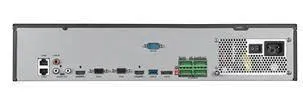

| External Interface | ||
|---|---|---|
| Network Interface: | � | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
| Serial Interface: | � | RS-232, RS-485, Keyboard |
| USB Interface: | � | Front panel: 2 � USB 2.0� Rear panel: 1 � USB 3.0 |
| Alarm In: | � | 16-ch |
| Alarm Out: | � | 4-ch |
| General | ||
|---|---|---|
| Power Supply: | � | 100 to 240 VAC, 50 to 60 Hz |
| Consumption(without hard disk and POE): | � | ?30 W |
| Working Temperature: | � | -10 oC ~ 55 oC ( 14 oF~ 131 oF) |
| Working Humidity: | � | 10 % ~ 90 % |
| Chassis: | � | 19-inch rack-mounted 2U chassis |
| Dimensions: | � | 445 � 470 �90 mm (17.5"� 18.5" � 3.5") |
| Weight(without HDD): | � | ? 10 Kg (22 lb) |
INCLUDES: 2 YEAR WARRANTY�
