Features
- 16CH Tribrid HD-CVI DVR, supporting HD-CVI/IP/Analogue video inputs
- 264 dual-stream video compression
- 16CH @1080P realtime recording
- 2*HDMI, 1*VGA, 1*TV simultaneous video output
- 16 channel synchronous realtime playback, GRID interface & smart search
- ONVIF version 2.4 conformance
- Support 8*SATA HDDs up to 32TB, 1*eSATA, 4*USB2.0
- Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone (DMSS)
Specifications
|
Model |

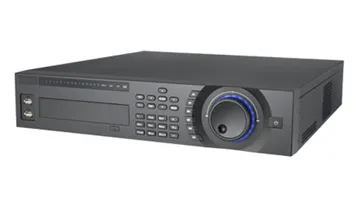

DVR7816S/CVI |
|
|
System |
||
|
Main Processor |
Embedded processor |
|
|
Operating System |
Embedded LINUX |
|
|
Video |
||
|
Input |
16 channel, BNC |
|
|
Standard |
HDCVI |
1080P/720P HDCVI Camera |
|
Analogue |
NTSC(525Line, 60f/s), PAL(625Line, 50f/s) |
|
|
IP |
1080P/720P/D1/CIF IP Camera (max. 24ch IP) |
|
|
Audio |
||
|
Input |
16 channel, BNC |
|
|
Output |
1 channel, BNC |
|
|
Two-way Talk |
1 channel input, 1channel output, BNC |
|
|
Display |
||
|
Interface |
2 HDMI, 1 VGA, 1 TV |
|
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
|
Display Split |
1/4/8/9/16/25/ |
|
|
Privacy Masking |
4 rectangular zones (each camera) |
|
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
|
Recording |
||
|
Video/Audio Compression |
H.264/G.711 |
|
|
Record Rate |
Main Stream: |
1080P/720P/960H/D1/HD1/2CIF/CIF(1-25fps) |
|
|
Extra Stream: |
CIF/QCIF(1~25/30fps),D1 |
|
Bit Rate |
48~6144Kb/s |
|
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
|
|
Record Interval |
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
|
Video Detection & Alarm |
||
|
Trigger Events |
Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips |
|
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|
|
Alarm Input |
16 channel |
|
|
Relay Output |
6 channel |
|
|
Playback & Backup |
||
|
Sync Playback |
1/4/8/16 |
|
|
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
|
|
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
|
Backup Mode |
USB Device/eSATA/Internal SATA burner/Network |
|
|
Network |
||
|
Ethernet |
2*RJ-45 port (10/100M/1000M) |
|
|
Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
|
|
Max. User Access |
128 users |
|
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
|
Storage |
||
|
Internal HDD |
8 SATA ports (8*HDD or 6*HDD 1*CD/DVR-RW), up to 32TB |
|
|
External HDD |
1 eSATA port |
|
|
Auxiliary Interface |
||
|
USB Interface |
4 ports (2 Rear), USB2.0 |
|
|
RS232 |
1 port, For PC communication & Keyboard |
|
|
RS485 |
1 port RS485 for PTZ control . 1 port RS422 for Keyboard |
|
|
General |
||
|
Power Supply |
AC100-240V, 50/60Hz |
|
|
Power Consumption |
40W(without HDD) |
|
|
Working Environment |
-10°C ~ 55°C / 10%~90%RH / 86~106kpa |
|
|
Dimension(W×D×H) |
2U, 440mm×460mm×89mm |
|
|
Weight |
6.5KG(without HDD) |
|
