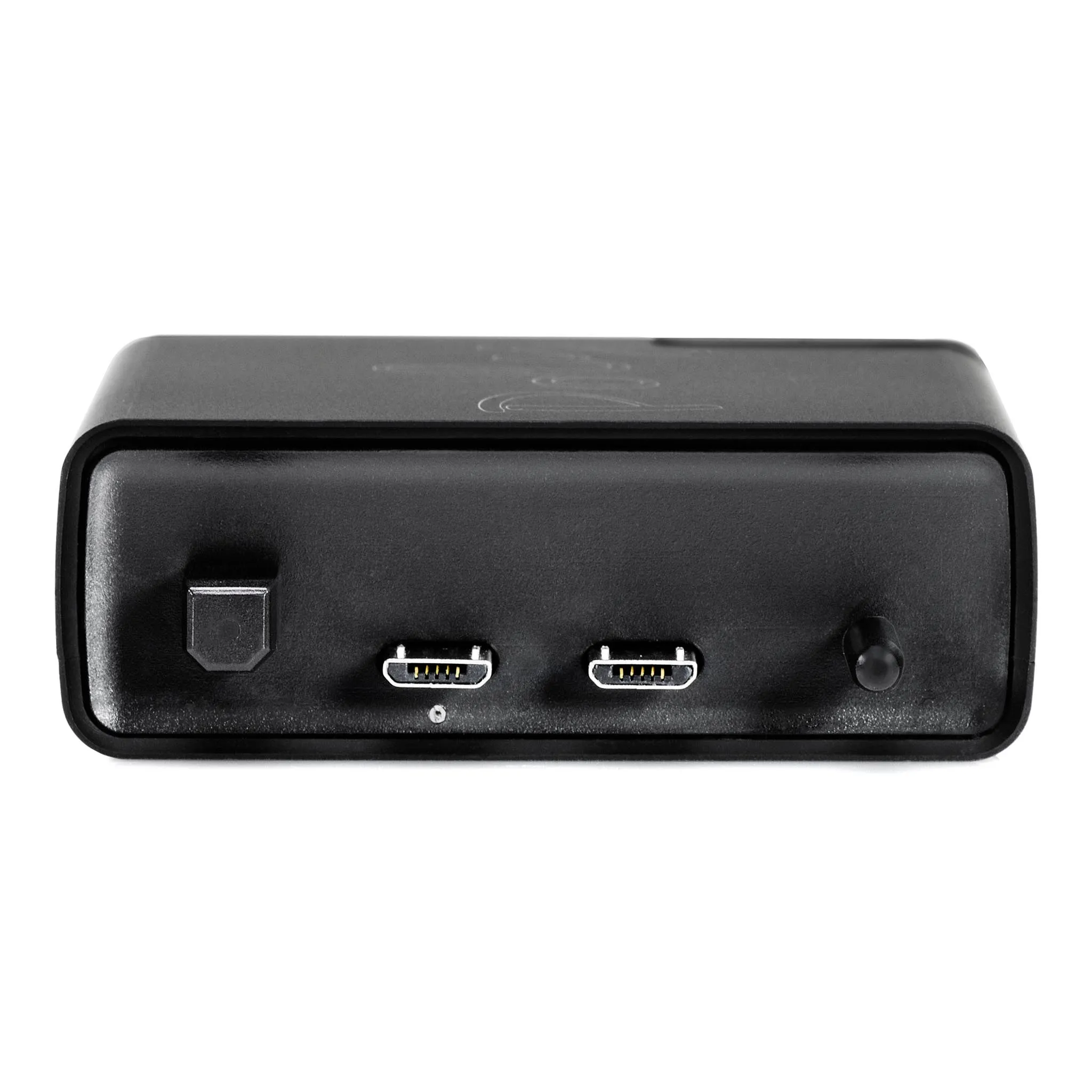

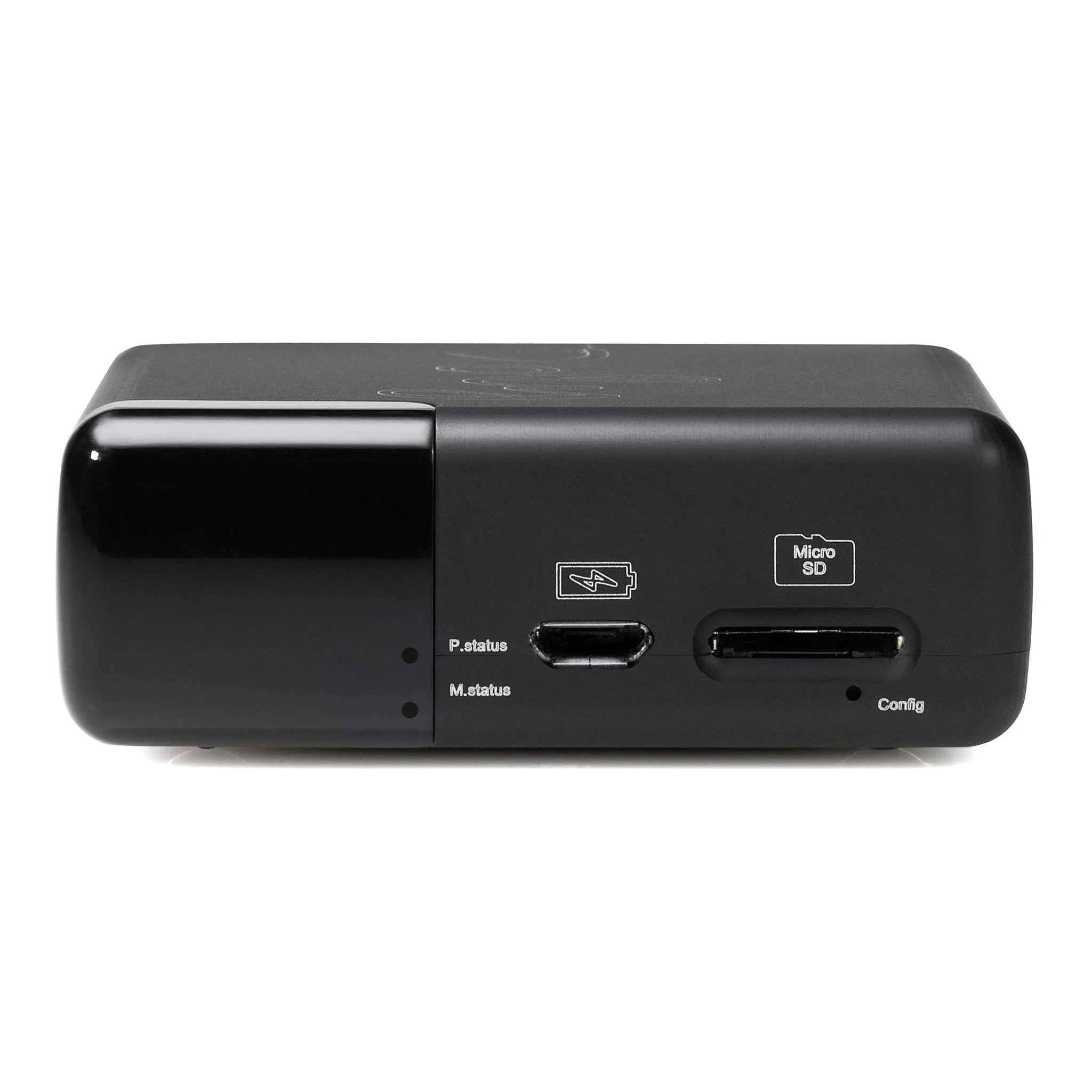

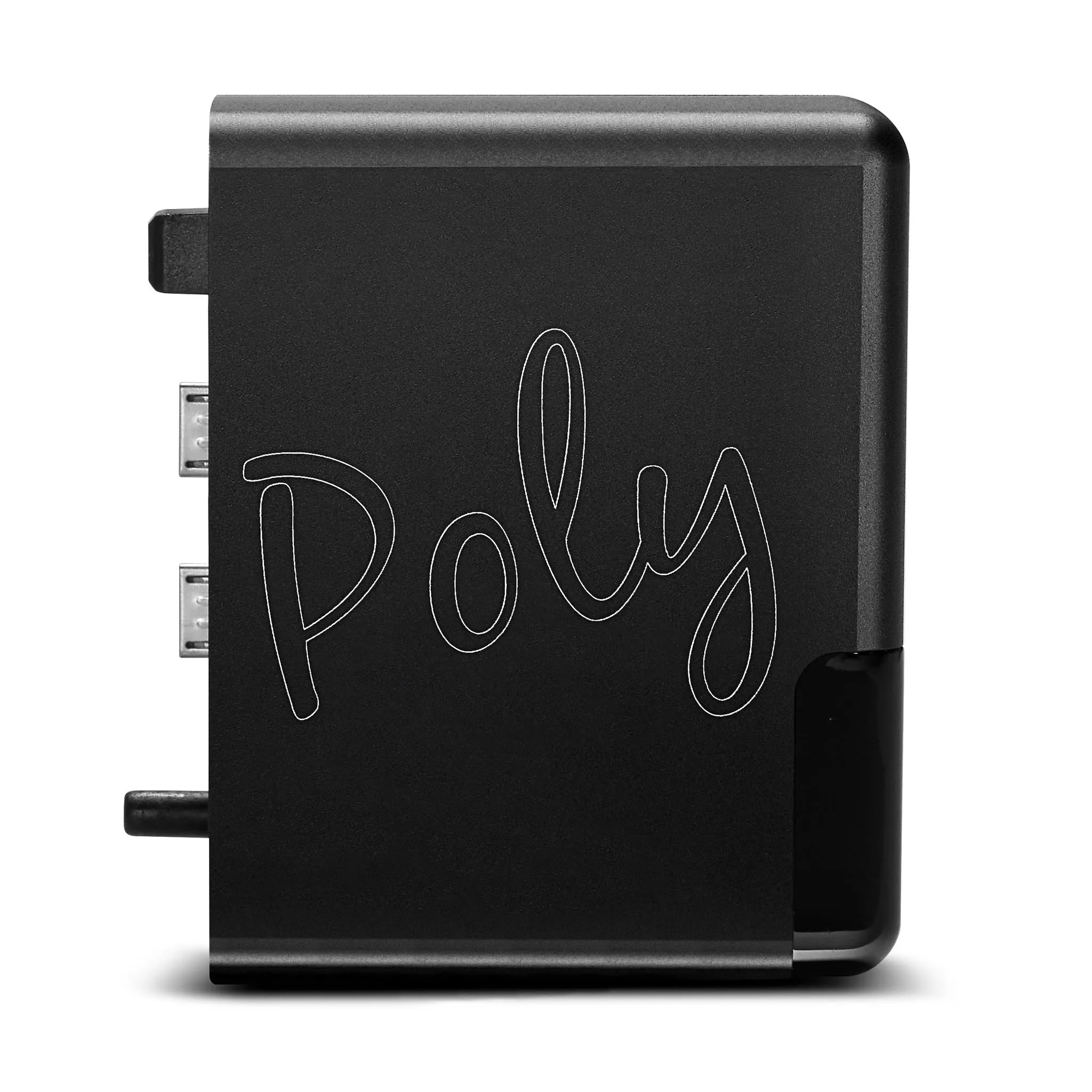

Chord Poly Wifi / Bluetooth Module for Mojo DAC

Poly is a revolutionary music streamer. When partnered with Mojo, it enables music streamed from a range of wirelessly connected devices. Poly is also a music player with an unlimited-capacity Micro SD card slot. Full smartphone control using everyday apps enables effortless music playback whether streaming or playing music from the Micro SD.

Poly directly connects to Mojo’s award-winning audio processing (DAC) technology dramatically improving the audio quality of streamed music. Its advanced design enables everyday devices, including Android and Apple smartphones/tablets, to become portable ‘hi-fi-quality’ digital audio players: the smartphone becomes the controller, with Poly and Mojo doing the high-level audio processing. Poly can also be used with computers and laptops, plus it can access networked audio stored on NAS drives using popular DLNA apps. Playback is via Mojo’s twin headphone outputs, plus home and in-car audio systems with auxiliary (AUX) inputs can also benefit from improved sound quality.

Poly connects to Wi-Fi networks, including mobile hotspots when on the go, and remembers multiple networks with its auto-connect functionality. It also benefits from Bluetooth 4.1, AirPlay and DLNA connectivity, offering uninterrupted music streaming when transitioning from indoors to outdoors. Poly also features its own hotspot mode, enabling a connection where devices, networks, or countries do not facilitate tethering. Its rechargeable LiPo batteries offer up to nine hours of playback from a four-hour charge using the device’s fast-charging USB circuit; both Poly and Mojo can be charged simultaneously.

Features

• iOS/Android app control
• 9-hour playback
• Long-range Wi-Fi
• AirPlay, Bluetooth A2DP playback
• Micro SD card storage
• Roon endpoint and server
• UPnP/DLNA server
• Up to DSD256
• DSD via DoP
• Precision-machined aluminum casing with black anodization, opaque black wireless signal window, and silicone feet
• Over-the-air software updates

Specifications

Battery: Rechargeable LiPo 2200mAh battery: 9-hour playtime and fast-charging via USB

Playback support: Roon, DNLA, AirPlay, Bluetooth 4.1

File support: ACC, WAV, FLAC, AIFF, OGG VORBIS, ALAC, WMA, MP3

PCM sample rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192, 358.8, 384,717.6, 768

DSD via DoP sample rates: DSD64 – DSD256 (Quad-DSD); DSD from SD card

Devices supported: iPhone, iPad, Android phones/tablets, Windows and Mac OS X computers and DAPs

Dimensions (WHD): 2.44" x 0.87" x 1.97" (6.2 x 2.2 x 5 cm)
