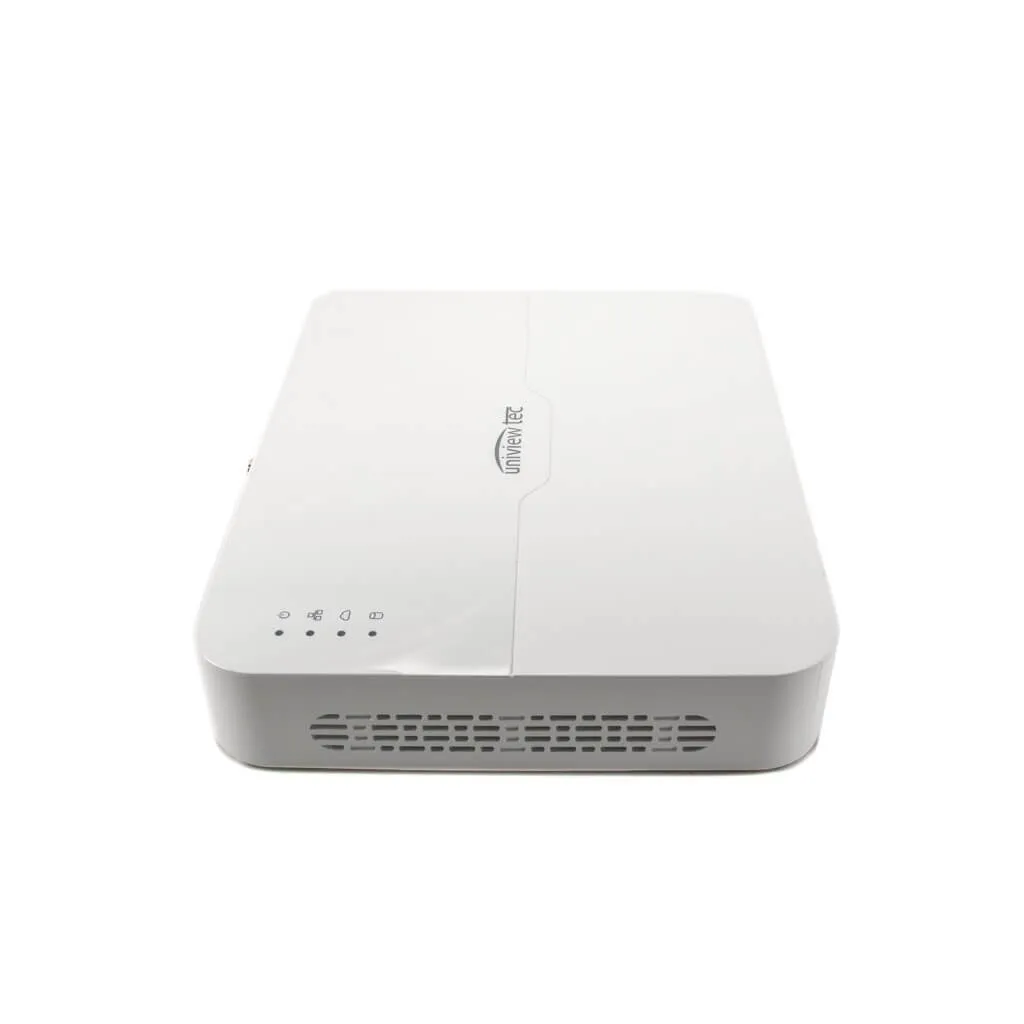

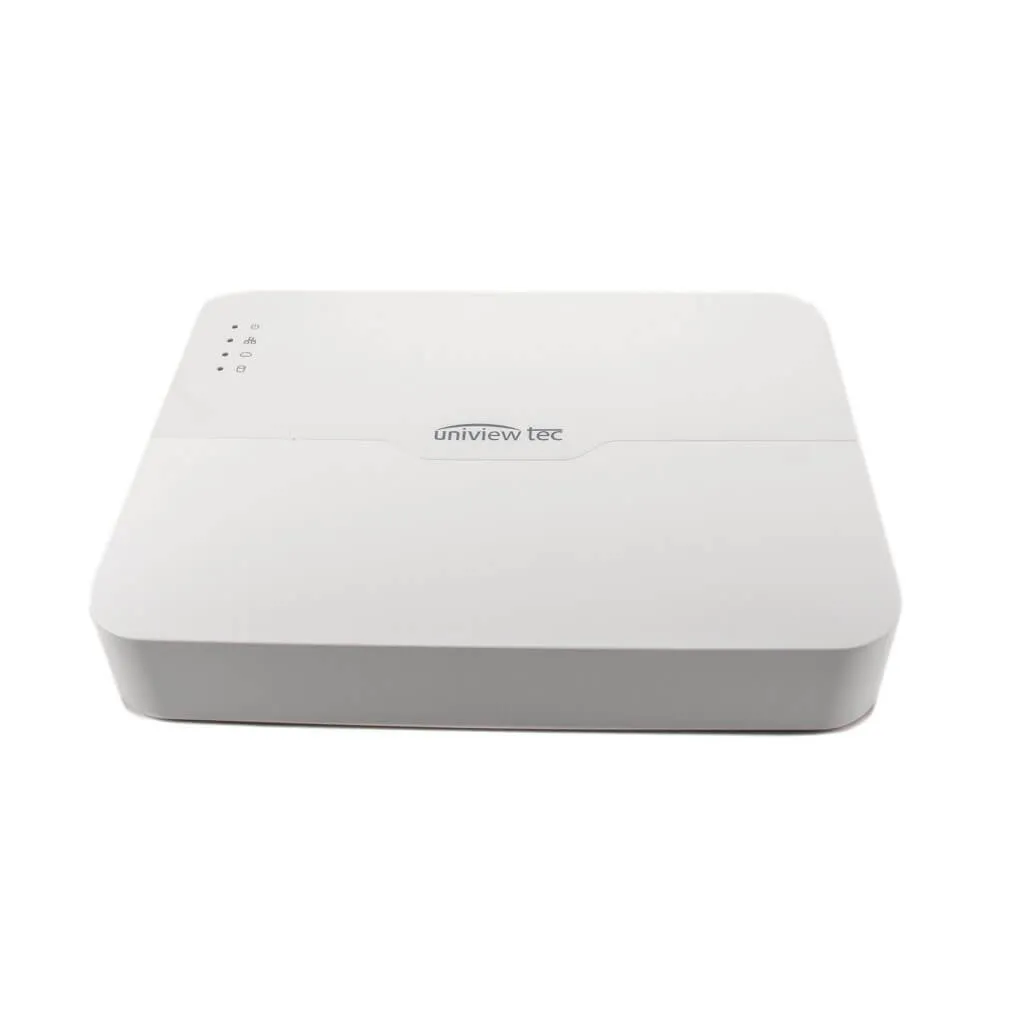

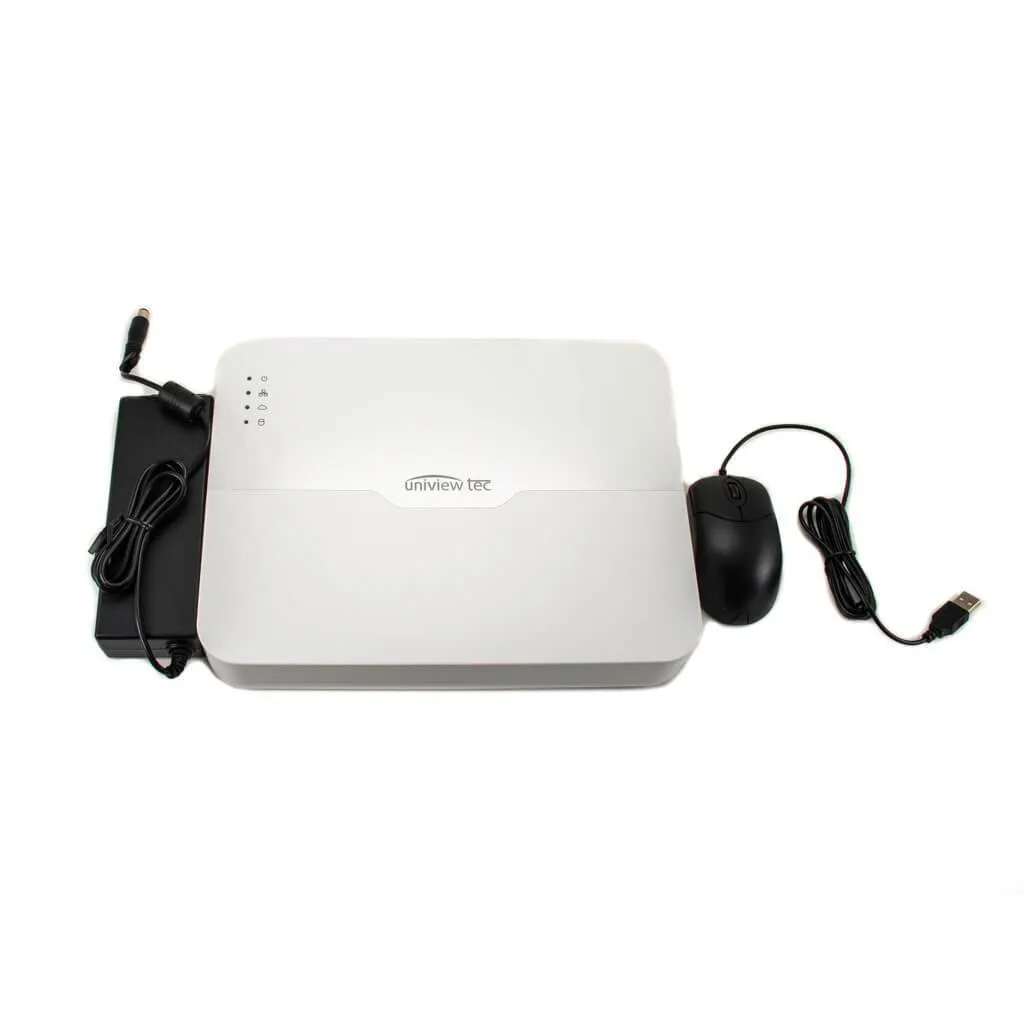

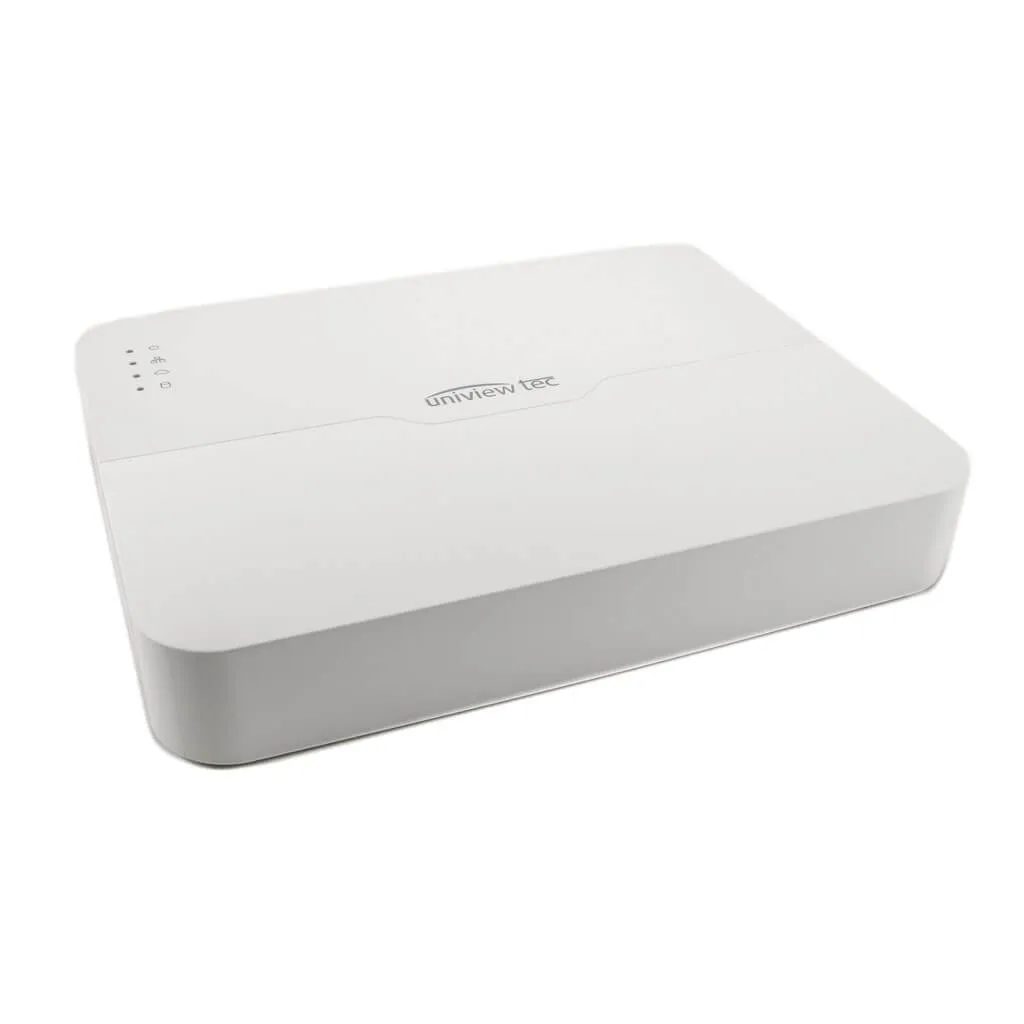

8 Camera 4K Security Network Video Recorder With 8 POE and 2TB / 4TB HDD
The NR08 has the following features:
- 8ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Performance
- Embedded PoE Switch for all Video Channels Up to 240W
- Supports recording of up to 12MP (4000 x 3000) Resolution Images
- Display Images up to 4k (3840 x 2160) Resolution on HDMI Output
- Supports 2 SATA HDD’s up to 10TB each for 20TB total
- ONVIF Profile Series Compliant
The NR08P2T/4T - 8 camera 4K NVR can accommodate 8 IP cameras. This features long-range PoE capability, up to 250M (825ft) with Cat5E or Cat6 for powering your IP cameras.
This NVR can record up to 4K resolution (3840 x 2160). For storage, you'll get either a 2 or 4 TB HDD built-in depending on what model you choose. You'll also be able to use HDMI and VGA displays and concurrently view the display on either if using both.
This NVR supports audio input/output so you can capture sound at the camera. The NR08P2T/4T can be used to control Pan/Tilt/Zoom cameras and features alarm input/output functionality. You'll be able to, for instance, have an output on your alarm cause the cameras to start recording when the alarm system goes into an alarm state. The NVR also has video analytics features such as scene change recognition, cross-line detection, and people counting. Note that some of these video analytics do require the use of Uniview compatible cameras.
If using Uniview cameras, camera installation with the NR08P2T/4T is plug and play as this features automatic device discovery and display. Other brands of IP cameras may be used with it, however these may not auto discover and enroll.
You can have a good amount of storage with this NVR as it supports 2 SATA HDDs. You can have up to 20 TB for storage at 10 TB per SATA if you choose. There is of course a USB 3 port to backup video files as needed.
The NR08P2T/4T is also ONVIF Profile S compliant for IP cameras. is a protocol used to ensure compatibility between IP products no matter the manufacturer.
This NVR is supported by Uniview Tec's Guard Station Client Software and Guard Viewer Mobile app so you can remotely view your cameras from anywhere. The app is available on the or .
Video | |
IP Camera Inputs | 8 channel |
Video Formats | Ultra 265, H.265, H.264 |
Recording Video Resolution | 12MP Maximum |
Playback Video Capability (fps) | 2 x 4K @ 30, 3 x 5MP @ 30, 4 x 4MP @ 30, 5 x 3MP @ 30, 8 x 1080p @ 30 |
Monitor Output | 1 x HDMI (4K~ 720p); 1 x VGA (1080p ~ 720P) |
Synchronous Playback | 8 channels |
Network | |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
Bandwidth | Incoming – 160Mbps; Outgoing – 320Mbps |
Remote Users | 128 |
Video Analytics | Detection: Face, Intrusion, Cross-line, Audio, Defocus, Scene Change, Auto tracking, People Counting, Face and Behavior Search |
General | |

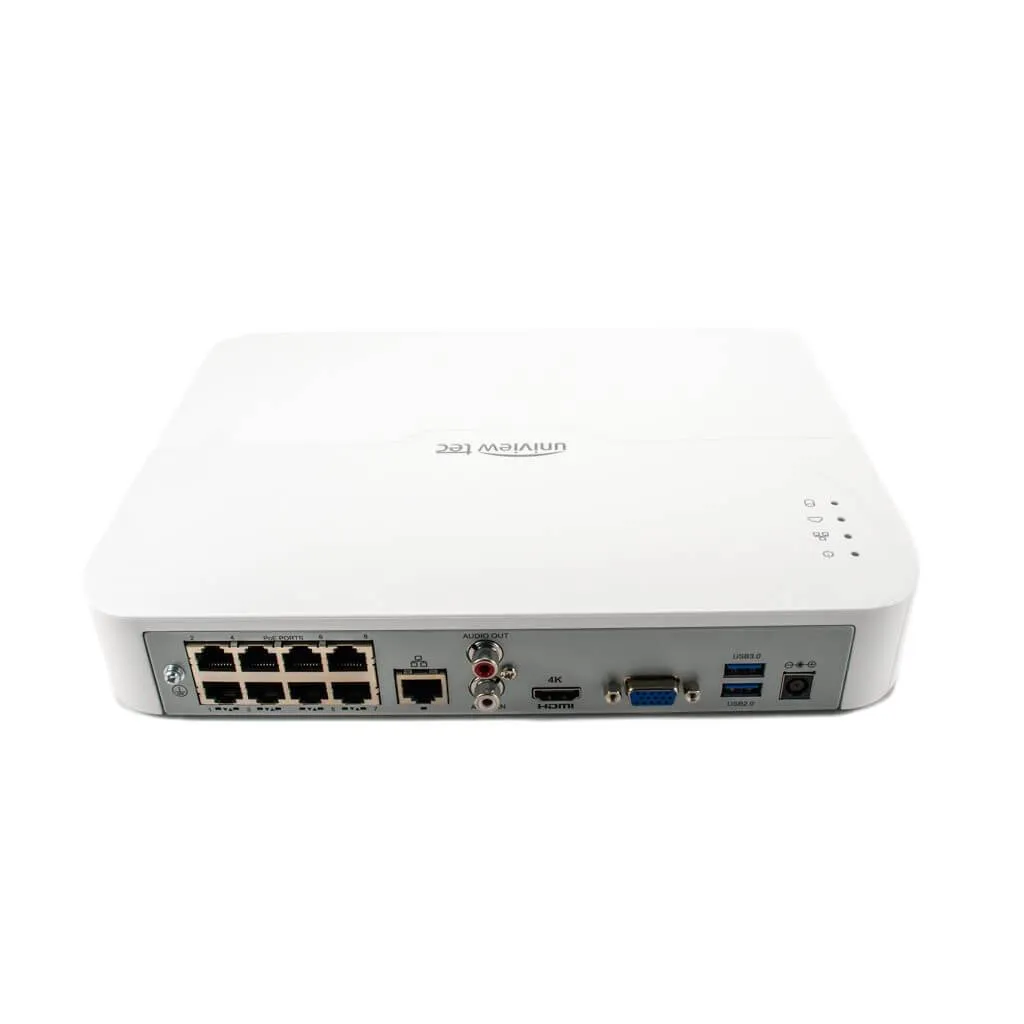

Network Interface | 1 – RJ45, 10M/100M/1000M, Ethernet |
USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
Alarm Interface | 4ch – Inputs; 1ch - Output |
PoE Interface | 8 – 100Mbps RJ45 ports; IEEE 802.3af/at; Max 30W single port, w/ Max 240W total |
Audio Interface | 1ch RCA Input / Output |
Corridor Mode | Record / Playback Multiple Cameras Simultaneously |
Hard Disk | 2 SATA, up to 10TB each, total 20TB |
Power | 100-240VAC; 20W Consumption (w/o HDD) |
Operating Temperature | -10°C ~ 55°C ( 14°F ~ 131°F ), Humidity ≤ 90% RH(non-condensing) |
Rack Mountable | Yes; see Accessories |
Dimensions | (WxDxH) 380 × 315 × 46 mm (15 × 12.4 ×1.8") |
Weight (w/o HDD) | 2.48kg(5.47lb) |
Conformity Certifications | FCC, CE (UL – Power Supply only) |
